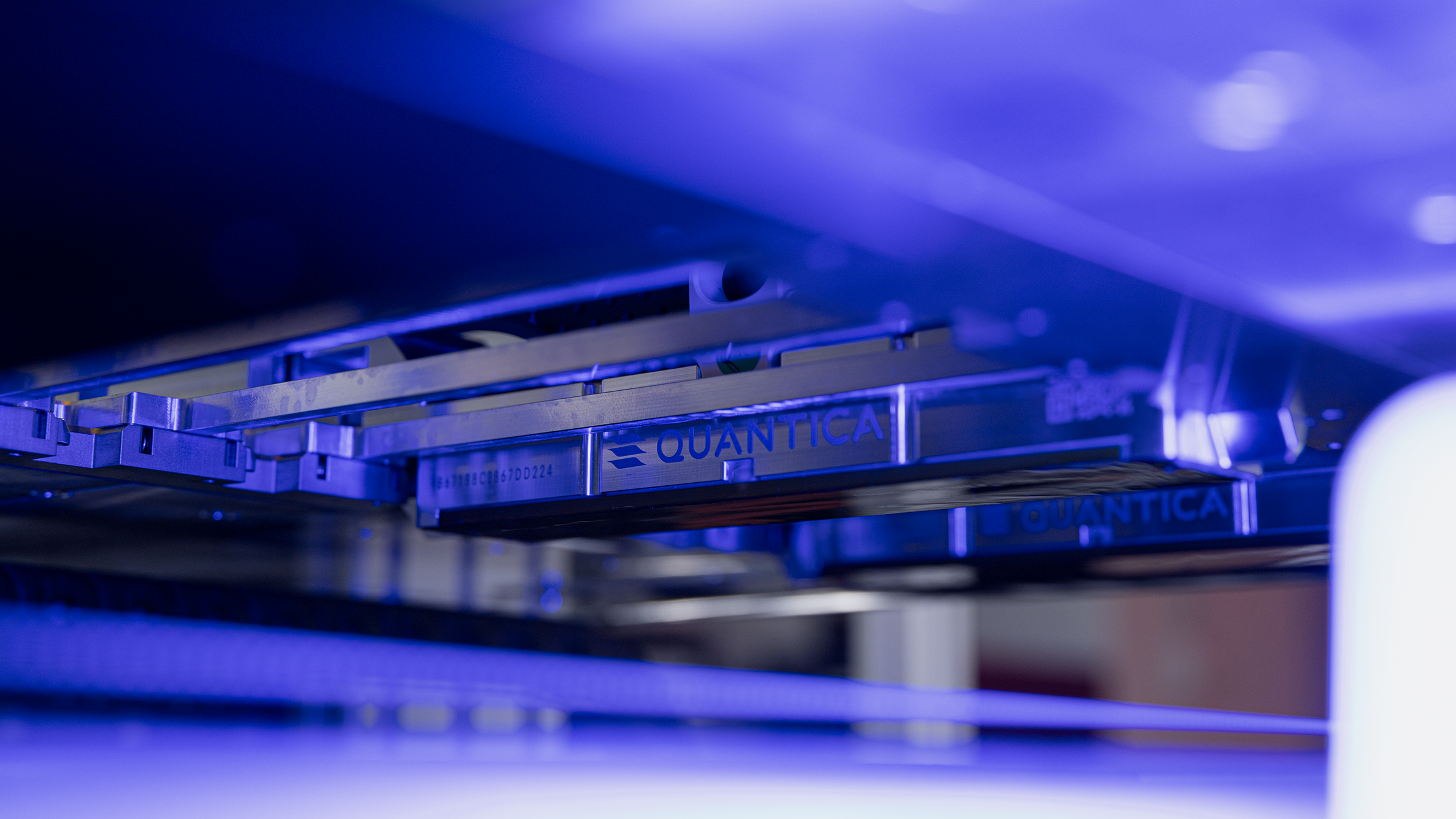

NovoJet™ Printhead Technology
Redefining digital manufacturing.
.png)
Transforming analog manufacturing to digital.
Quantica's proprietary NovojetTM printheads empower manufacturers and researchers with the unique capability to print functional, high viscosity materials never before jetted.
High Viscosity
Capable of handling highly viscous fluids up to 250 mPa•s at jetting temperature, 15x more than conventional printheads.
Large Particle Size
Jetting materials with large particle sizes,up to 9 µm D90 of diameter.
High Fill Rate
Printing high fill rates fluids, up to 75% of particle (by weight).
Digital manufacturing technology for different needs.
Precise & Efficient

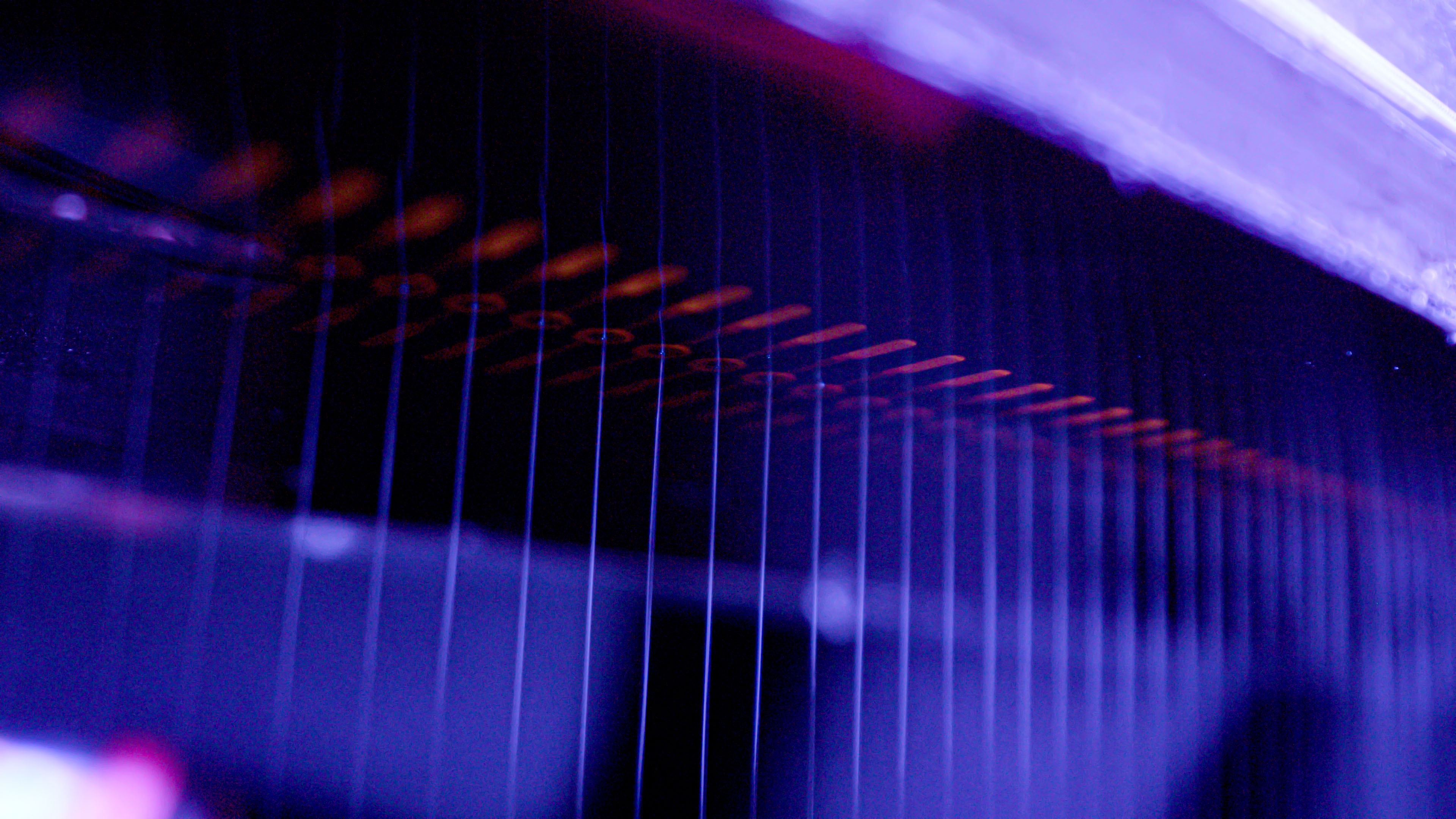

Enable drop-on-demand deposition of functional materials with our advanced inkjet technology. Deposit material only where needed, minimizing waste and lowering production costs.
Scalable & Flexible
Designed to support high-speed, high-volume production, our technology adapts to diverse manufacturing lines. Enjoy greater flexibility and customization, all while maintaining lower operational costs and boosting productivity.
How NovoJet™ stacks up to other technologies
Analog manufacturing processes face significant challenges, including speed limitations, low precision, mechanical constraints, and the need for skilled labor. NovoJet™ offers manufacturers enhanced control over production with a scalable, digital solution that overcomes these traditional drawbacks.
3
Specs
NovoJet™ Printhead
Specifications
Nozzle Count | 96 |
Rows of Nozzles | 1 |
Nozzle Diameter | 50µm & 90µm |
Nozzle Pitch | 1.27 mm |
Fluid Viscosity Range (Jetting temp) | 1 mPa•s – 250 mPa•s * ** *** |
Particle Size Range | up to 9µm D90 * ** *** |
Frequency | 8 kHz |
Flow Type | Back of nozzle high flow recirculation |
Surface Tension | 30-72 mN/m |
Jetting Temperature | 20 – 80 °C |
* actual jettability depends on other physical attributes of the fluids such as non-Newtonian behavior, stability of viscosity over time, elasticity, particle concentration, particle size distribution, particle agglomeration
** as measured in viscometer at jetting temperature (80 C max). The ink system may require significant time to stabilize temperature and flow in some circumstances
*** specification subject to change
